11 MUST-KNOW Things Before Tuning Your 1.6 TDI

In this article, you will discover everything you absolutely need to know before tuning your 1.6 TDI CAYA, CAYB, CAYC, and other variants of the CAY engine.

You will find the main possible modifications, the expected gains, the limits of each configuration, as well as the points to monitor to maintain an engine that is both powerful and, most importantly, reliable.

All information presented is based on our own experience and achievements. The values announced are based on real measurements and results, obtained on both our vehicles and those of our customers.

Platform

At VAG, there are 3 platforms on which these engines were mounted:

PQ25:

• Volkswagen: Polo V (2009-2017), Vento (2010-2022)
• SEAT: Ibiza IV (2008-2017)
• Škoda: Fabia II (2007-2014), Rapid (2012-2021)
• Audi: A1 (2010-2018)

PQ35:

• Volkswagen: Golf V, Golf VI, Golf Plus, Jetta V, Jetta VI, Scirocco, Eos, Tiguan I, Touran I, Caddy III, Beetle
• Audi: A3 (8P), TT (8J), Q3 (8U)
• SEAT: León II, Toledo III, Altea
• Škoda: Octavia II, Yeti

PQ46:

• Volkswagen: Passat B6 (2005-2010), Passat B7 (2010-2015), Passat CC (2008-2017)
• Škoda: Superb II (2008-2015)

Each platform has its own specificities, constraints, and advantages, which we will detail later in this article, particularly concerning the different peripherals.

However, the engine bases are common to all platforms: the block architecture, the bottom and top ends of the engine, as well as the Siemens / Continental – VDO injection system remain identical.

Thus, the different sub-sections presented in this guide are globally applicable to all platforms, with certain specificities that will be detailed throughout the article.

Injection

The injection system is undoubtedly the number one point to monitor on a 1.6 TDI CAY when it comes to tuning.

In its original configuration, it already offers interesting potential, provided that the entire system is in perfect condition. The injectors are a decisive element: their wear or malfunction can lead to a loss of performance, increased fuel consumption, or irregular engine operation.

Replacing them with new injectors represents a significant investment, but it allows for a fresh start, with precise and controlled fuel delivery. This is essential to guarantee engine reliability and fully exploit its potential.

Original injection

• High cost, but once replaced, these injectors are reliable (a tutorial exists for replacement, coding, and adaptation of injectors)
• High-pressure (HP) pump is very reliable and durable, provided regular maintenance (replacing the fuel filter remains inexpensive compared to the cost of replacing the HP pump)
• Maximum power: 200–215 hp, depending on engine condition
• Maximum torque: 380–430 Nm, depending on engine condition

50% Injector Nozzles

• Relatively low cost: original injectors can provide higher fuel flow with these nozzles, provided they are in good working condition
• The original high-pressure pump can handle these flows without pressure loss in the rail (up to a certain level)
• Theoretical maximum power: 300–320 hp (actual 250-280hp MAX)
• Theoretical maximum torque: 600–680 Nm, much higher than what the engine internals can withstand (actual 520-550 Nm)

Turbocharger

The turbocharger, along with the injection system, is one of the two fundamental pillars of diesel engine tuning, regardless of its technology.

Several solutions are available in this section, depending on your power goals, the intended use of the vehicle, and your budget. Each configuration has its own advantages, constraints, and limitations, which we will detail later.

⚠️ However, be careful: the stated power figures directly depend on the condition of the injection system and the health of your engine. With age and mileage, injectors can gradually lose efficiency, which can significantly limit the performance achieved, without necessarily causing a malfunction.

The power values indicated below are therefore given as an indication. Actual results may vary depending on the overall condition of the engine, its injection system, and all its peripherals.

Turbo	Technology Type, Axle Support	Advantages	Disadvantages	Max Power
Original	Hydrodynamic bearing	Good spool at low revs, responsive	Limited at high revs, low airflow, smoke above 160 hp	130–165 hp
Original MFS	Hydrodynamic bearing, MFS wheel	Good spool, better airflow	Requires disassembly and rebalancing of the CHRA	170–190 hp
1549 (original)	Hydrodynamic bearing	Reliable original part, higher pressures and performance possible, easy replacement in case of failure	Limited gains without other modifications (injection, exhaust, intercooler, ...)	170–220 hp
1549 / 1556 MFS	Hydrodynamic bearing, MFS wheel	Slightly faster spool, more airflow	Higher EGTs, higher exhaust pressures	210–240 hp
1752	Ceramic bearings, MFS wheel	Excellent spool, withstands high EGTs, perfect for daily use/occasional track, replaceable CHRA	Higher purchase cost and in case of failure, custom modification of original turbo required	240–260 hp
1756	Ceramic bearings, MFS wheel	Ideal for drag racing and high revs, good power potential, similar to 1752	Slightly slower spool at low end, suitable for sporty daily use, replacement cost in case of failure	260–280 hp
2060	Hydrodynamic bearing	Very large theoretical potential	Very slow spool (full boost from 3200 rpm), numerous modifications required, unusable for comfortable daily driving	280–320 hp (theoretical)
1749 / 1752 / 1856	Older generation turbos (1.9 TDI)	No gain, even slight loss compared to the options listed above (1549/1752/1756)	Bad idea - these turbos are not designed for Common Rail engines, and will not perform optimally with them, compared to the options listed above	close to 1549 / 1752 / 1756

Beyond the 2060 turbo, it is of course possible to consider even more radical configurations, particularly with 2260 ball-bearing turbochargers.

However, this type of setup is largely oversized for a 1.6 TDI and implies significant modifications, both in terms of integration and the peripherals necessary for their operation.

The primary objective of this guide is to direct you towards reliable, proven, and reproducible configurations, capable of delivering concrete results without turning the tuning into a financial abyss — or sacrificing an engine in the process — we have deliberately excluded these more extreme solutions from our comparison.

They remain, however, technically feasible for the most ambitious projects, and we are capable of performing this type of assembly for you.

Turbo inlet damper delete

The plastic outlet of the original turbocharger is a restrictive point on the 1.6 TDI. Its design limits airflow and penalizes the turbo's ability to spool up, resulting in longer response time, reduced low-end torque, and overall poorer performance.

The turbo inlet damper delete optimizes the airflow out of the compressor and significantly improves the turbocharger's response. Depending on the turbo size and its settings, the gain can represent up to 100 to 350 rpm less spool to achieve the same boost pressure, resulting in a more immediate throttle response and faster acceleration.

Note: some turbochargers (1752, 1756, and 2060) can be ordered directly with a larger diameter compressor outlet (contact us). This avoids the need to add this part separately.

The 1549 turbos, however, require this part on PQ25 setups. It also helps to partially correct the orientation of the turbo outlet towards the intercooler inlet, thus facilitating integration.

Intercooler

Controlling intake air temperatures (IAT) is essential for both performance and reliability in tuning.

Lower IATs help to limit engine heat, preserve components, and reduce the risk of premature wear on seals, which are particularly stressed when boost pressures increase.

The intercooler is therefore a key point not to be neglected on a tuned diesel.

The volume of the core is simply calculated as Length × Width × Height. Depending on the platform, original dimensions vary greatly:

• PQ25: 640 × 82 × 62 mm → 3.25 L
• PQ35 / PQ46: 616 × 405 × 32 mm → 7.98 L

For a light tune around 180–200 hp, the PQ35/PQ46 intercooler may suffice, but it remains perfectible in terms of IAT control for further enhancements.

Our recommendation: upgrade to a larger intercooler than the original, ideally 10 L or bigger. We offer 11.5 L intercoolers to maintain controlled intake temperatures and ensure better long-term performance.

You can find them here, either weldable (see image) or connectable (silicone elbows) with other parts to perfectly adapt to your current boost circuit.

Clutches and Gearboxes

With increased torque, the original clutch of the 5-speed gearbox (MQ250) quickly reaches its limits. The pressure plate can no longer sufficiently hold the disc, which can then slip during hard accelerations.

In practice, we consider ~280 Nm as the reasonable limit for the original clutch. Beyond that, wear can become very rapid: on configurations with 350–360 Nm, we have observed original clutches lasting less than 10,000 km, even when new and properly broken in.

Several solutions are possible:

• Original kit: ideal for a Stage 1 configuration, offering a good balance of comfort and price. Approximately 280–320 Nm depending on use.
• Single reinforced clutch kit: retains the original flywheel and offers an excellent compromise between comfort and capacity. Approximately 380–440 Nm depending on driving style and break-in. Slight increase in vibrations/noise at idle is possible.
• Sachs Racing Reinforced: firmer pressure plate and organic or sintered disc. Engagement is sharper, but the pedal is harder and comfort may be less suitable for daily use. Capacity of approximately 530–550 Nm.

⚠️ However, please note: the clutch is not the only element to consider. The MQ250 5-speed gearbox is not designed to permanently withstand such high torque levels. Intensive use can accelerate synchro wear or even lead to breakage.

For more advanced preparations, upgrading to an MQ350 6-speed gearbox is a significantly more robust solution and better suited for high torque. We will detail this conversion in a dedicated article.

Exhaust

The original exhaust line quickly becomes a restriction when increasing performance. With the DPF, temperatures and flow restrictions (sometimes mistakenly called "back pressure") become limiting, which generally confines the original configuration to approximately 140–150 hp and 280–300 Nm.

To go beyond this, installing a downpipe allows for the removal of these restrictions and improves gas evacuation. Several diameters exist, from 50 to 76 mm, but beware: bigger doesn't necessarily mean better performance.

Indeed, since the flow is limited by the amount of air the engine can draw in, excessively increasing the diameter reduces gas velocity, which can harm turbo responsiveness and performance.

We therefore prefer a 60 mm diameter, which offers an excellent compromise between flow, gas velocity, and responsiveness. Our downpipes are made of 304L stainless steel and feature a reduction that allows connection to the original line.

This configuration is suitable for preparations up to 220–240 hp, depending on the rest of the configuration.

Two variants are available, due to design differences between platforms/chassis:

- Downpipe for Polo, Ibiza, Fabia, A1 models

- Downpipe for other models: Golf, Leon, Octavia, A3, etc…

Cylinder head bolts

In most preparations, the original cylinder head bolts are perfectly sufficient, even for relatively advanced configurations.

However, at high power levels—especially above 240 hp, with high boost pressures and significant temperatures—they can stretch and compromise the cylinder head seal.

For the most demanding configurations, we therefore offer reinforced cylinder head bolts, providing a safety margin far exceeding the engine's capabilities: over 450 hp and 850 Nm.

They are plug & play, require no modification of the original bolt holes, and can be installed without removing the cylinder head, by replacing the bolts one by one.

EGR Delete

The EGR system of the 1.6 TDI consists of two main elements: the EGR valve, which regulates the return of exhaust gases to the intake, and the EGR cooler, which lowers their temperature before they are reintroduced into the engine.

Both of these elements are sources of problems and can hinder performance. The valve can seize, break, or lose control, while vacuum lines can also develop leaks. The EGR cooler, for its part, is prone to leaking, both internally (coolant consumption) and externally.

We offer an EGR complete delete kit (valve + cooler) for Polo, Ibiza, A1, and Fabia.

For other models (A3, Leon, Golf, Octavia, etc.), the system design being slightly different, cooler deletion requires an additional hose. However, the lines connected to the EGR valve can be blocked off with the appropriate setup. Here's the difference between the parts in images:



Polo/A1/Ibiza/Fabia EGR Valve:

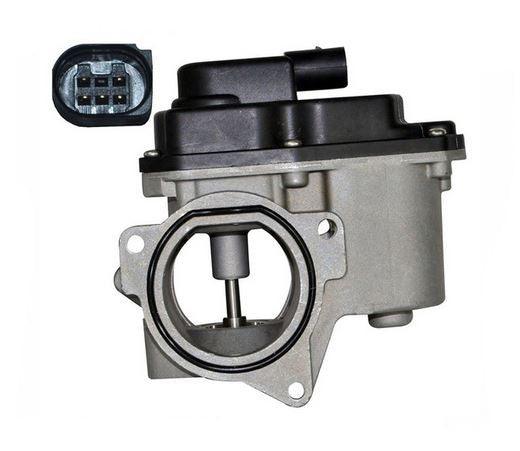

EGR Valve on other models (Golf, A3, Leon, ...):

Camshafts

The camshafts of 1.6 and 2.0 TDI engines are identical. Their interchangeability therefore offers no performance gain and is not relevant for tuning.

However, installing a performance camshaft set optimizes cylinder filling thanks to longer valve opening, thus promoting fresh air intake.

For an equivalent configuration, the gain can provide approximately 5-10% more power and 7-15% more torque.

⚠️ Installation and timing must be carried out with great precision. Incorrect adjustment can lead to timing failure or contact between valves and pistons. The Street and Race variants also have different profiles, with specific opening angles and heights.

The camshaft pulley bolt can be reused, with a tightening torque of 100 Nm.

Reinforced Valve Springs

The valve springs largely determine the engine's usable maximum RPM. Beyond their capacity, a phenomenon of valve float can occur: the spring can no longer close the valve quickly enough, with a risk of contact between the piston and the valve and, ultimately, malfunctions or even engine damage.

Reinforced valve springs allow for:

• Increasing the maximum RPM by a few hundred rpm.
• Maintaining valve control at high RPM, thus allowing the engine to be exploited more.
• Protection, under certain conditions, against the consequences of a "money shift": an accidental downshift instead of an upshift, leading to a sudden increase in engine speed that can cause piston-to-valve contact and damage the valves.

Some models available on the market require modifications to original components, notably shims or retainers.

Our reinforced valve springs are plug & play, and install without any modification to the original components.

Braking

Braking and chassis are not directly part of engine tuning, but these are elements that must be kept in mind as power and torque increase.

Going faster is one thing; being able to control and stop the vehicle in all conditions is another.

During strong accelerations, track use, or in case of runaway (engine overspeed caused by oil aspiration via the turbo), having braking in perfect condition becomes essential.

From approximately 170–180 hp and 340–350 Nm, we recommend at a minimum:

• Front: 288 mm on PQ25, 310 mm on PQ35 (and heavier models)
• Rear: recommended upgrade to ventilated discs (tutorial for installing 256 mm ventilated discs)

A performance braking system is obviously preferable, but a properly sized, reconditioned, and perfectly maintained original braking system already constitutes an excellent, often more economical solution.

Final Word

The parts presented in this guide cover the essential elements required for a reliable and coherent tuning of the 1.6 TDI.

For all the parts we offer, we provide personalized support and advice to help you choose the configuration adapted to your project and to ensure correct and secure installation.

In case of difficulty during installation or technical questions, do not hesitate to contact us via our contact form or directly on our social media, accessible at the bottom of the page.

Finally, thank you for your trust and support, and have an excellent adventure behind the wheel of your 1.6 TDI!
